Anemone

A Future Cities Lab project I managed and helped design and build. Inspired by California's native Anemone plant, this shade canopy was created for a breezeway at a UC Berkeley site in Albany, Ca.

The native California Anemone flower. The petal structure of the flower was the conceptual basis for the structure of this shade canopy.

The native California Anemone flower. The petal structure of the flower was the conceptual basis for the structure of this shade canopy.

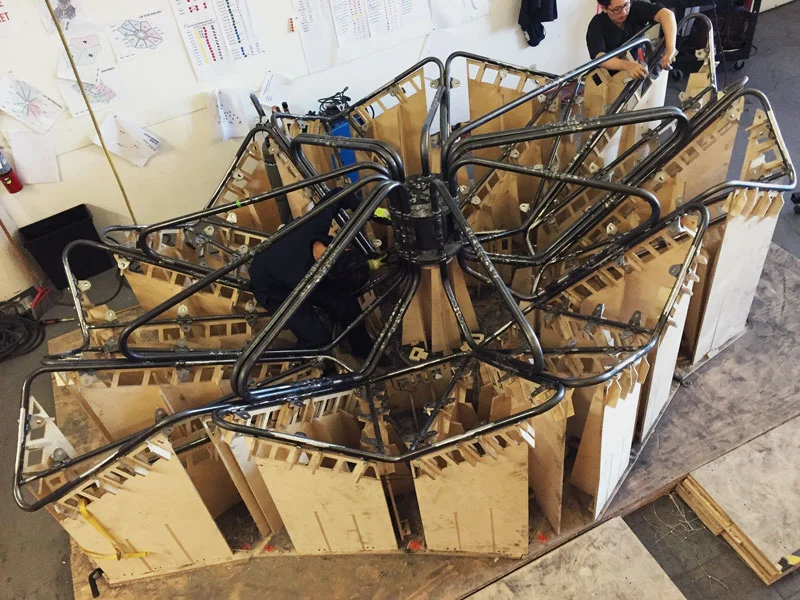

The alignment jig for welding the steel tubing.

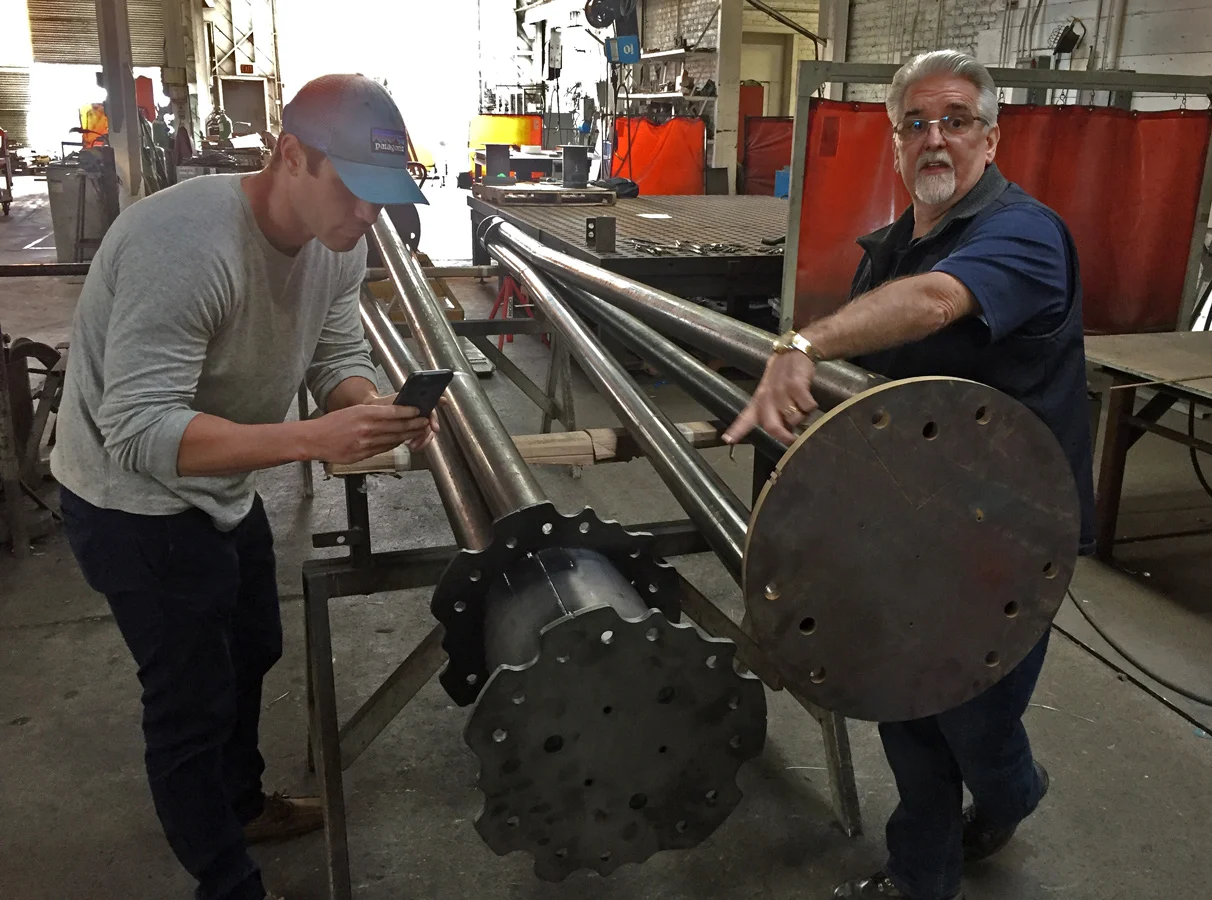

Welding the structure in our SF studio space.

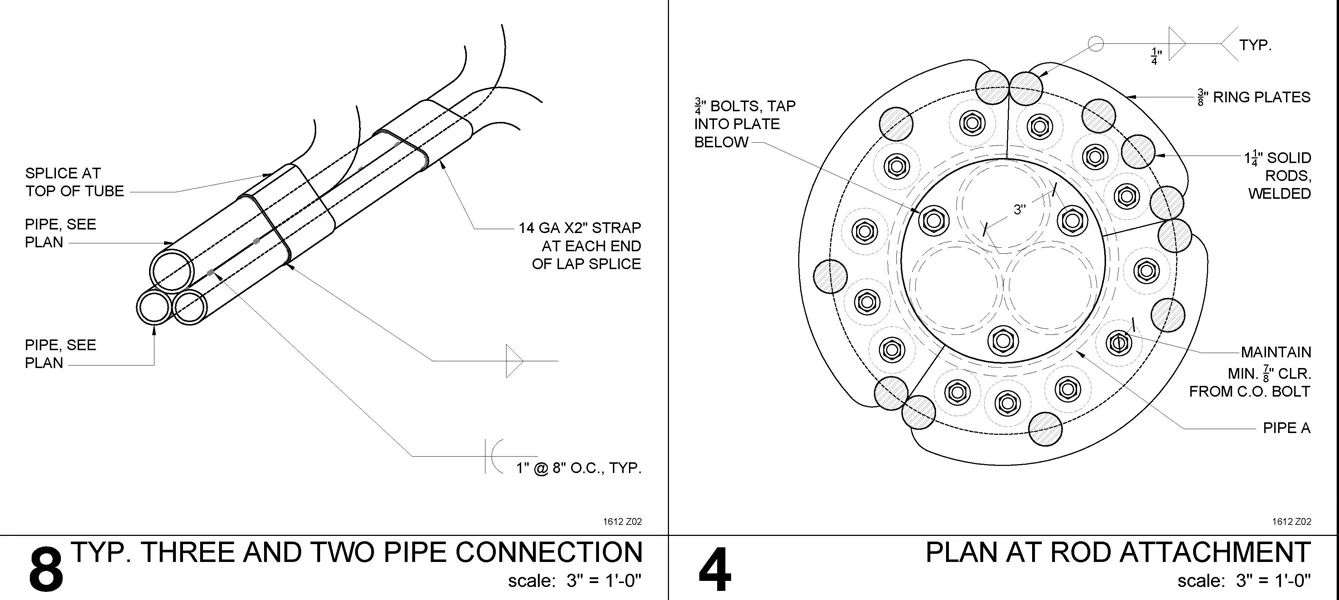

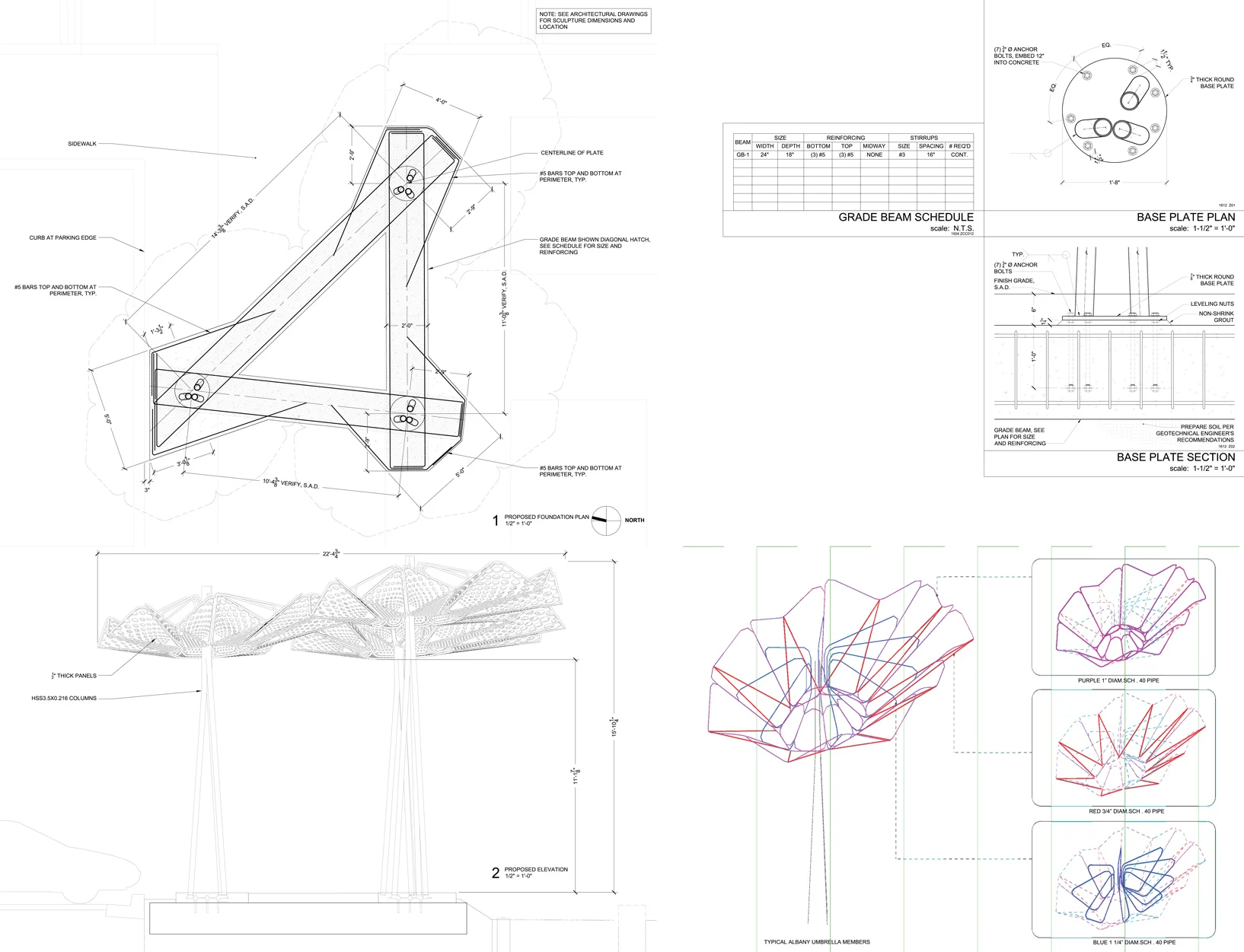

Drawing of mechanic and weldment connections for central columns.



A model that that was presented as part of the initial proposal

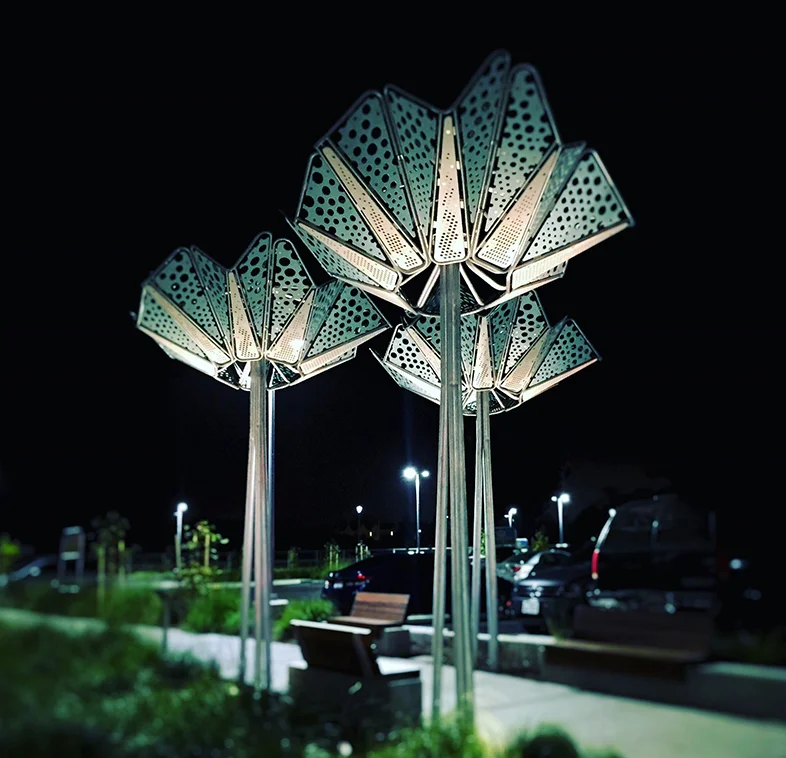

Final project installation

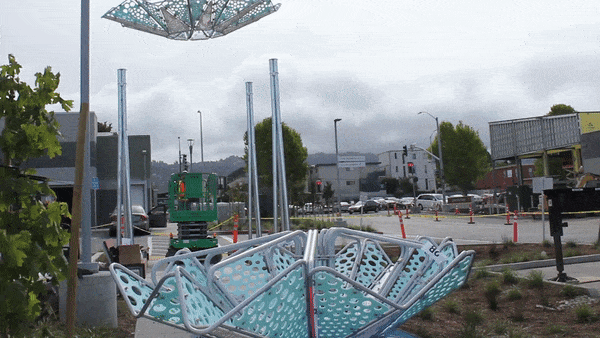

Footage of crane installation on site.

Footage of crane installation on site.

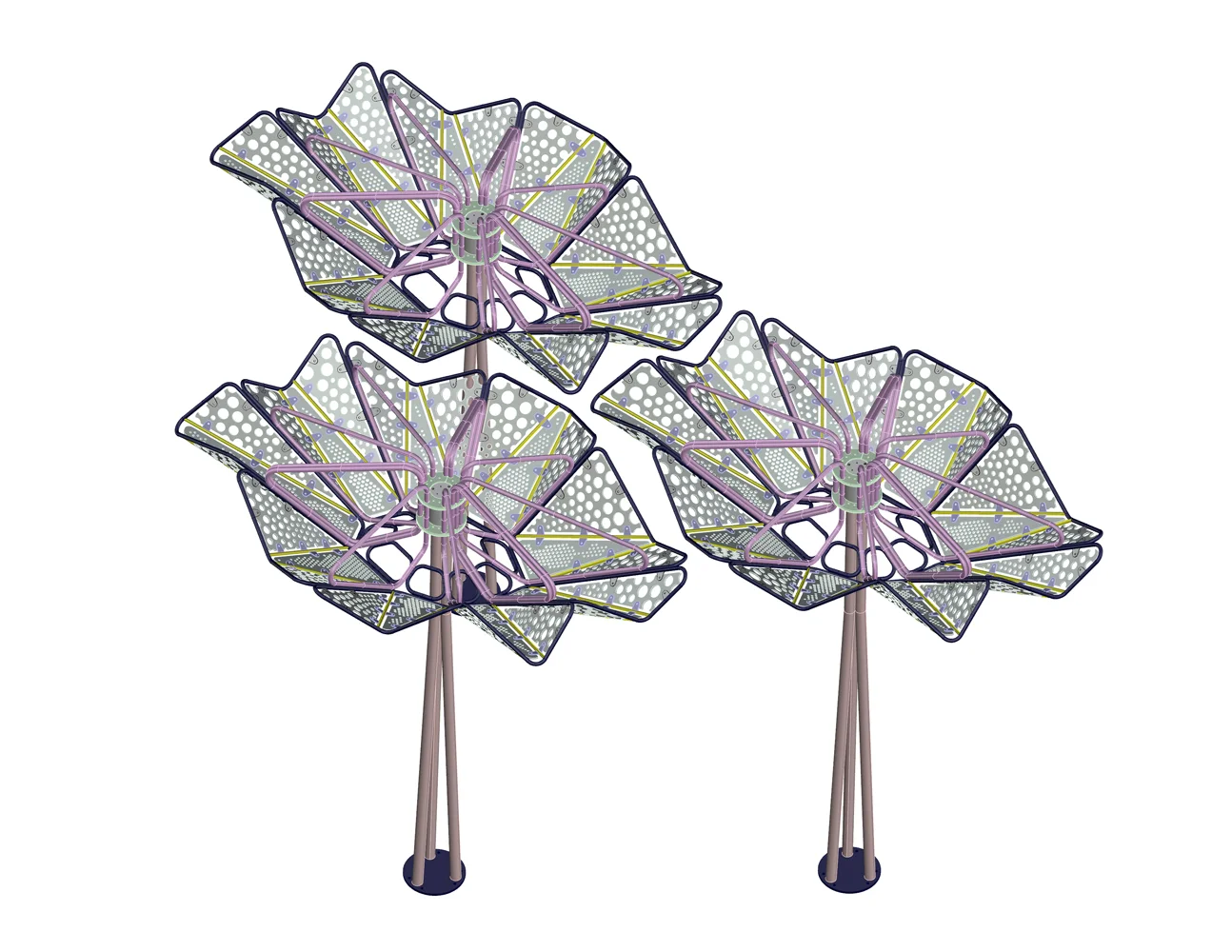

3d Model showing second design phase.
